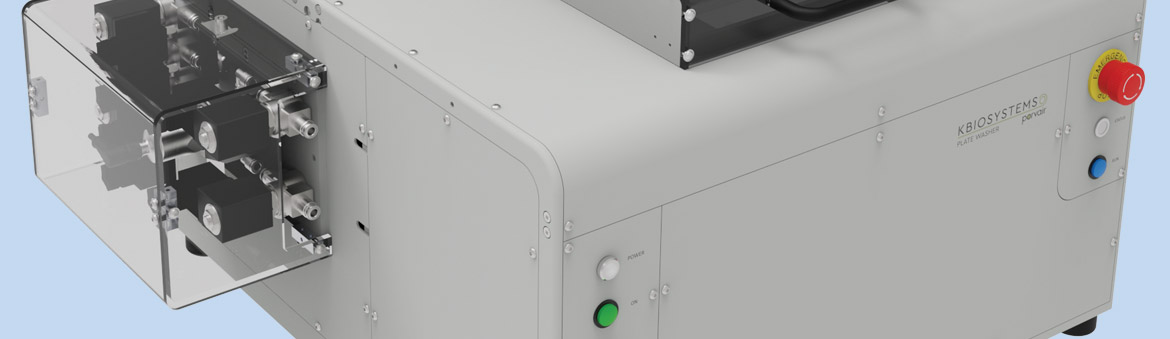

Microplate washing
The Kbiosystems Plate Washer is a cutting-edge, fully automated solution designed for efficient microplate washing and drying.
Offering an eco-conscious approach, the Plate Washer helps reduce plastic waste by enabling the reuse of microplates. With environmental concerns at the forefront, this system provides a reliable and cost-effective way to clean and dry microplates, eliminating the need for disposal methods like incineration.
Control options include intuitive software or button operation, allowing effortless hand-loading and retrieval of microplates.
Pneumatic: Requires air supply between 5.5 bar and 7 bar.
Liquid Supply: Operates within a range of 1 - 6 bar.
Compatible Liquids: Supports H2O, H2O2, bleach, and other approved solutions.
Microplate Compatibility: Works with most skirted 96- and 384-well microplates (minimum height: 10mm).
Offering an eco-conscious approach, the Plate Washer helps reduce plastic waste by enabling the reuse of microplates. With environmental concerns at the forefront, this system provides a reliable and cost-effective way to clean and dry microplates, eliminating the need for disposal methods like incineration.
Built with chemically resistant materials and robust mechanical engineering, the Plate Washer ensures thorough cleaning and drying of microplates.
Configurable Options
The Plate Washer is available in multiple configurations to suit different workflow needs. From a manually loaded version to a fully automated handling system, it adapts seamlessly. Users can choose between one or two plate hives for enhanced automation and efficiency.Control options include intuitive software or button operation, allowing effortless hand-loading and retrieval of microplates.
Standalone Plate Washer: Designed for manual loading and operation.
Fully Automated System: The device seamlessly processes microplates, washing, drying, and transferring them from input to output hive.
Key Features
- High Throughput: Completes a washing and drying cycle in just one minute.
- User-Friendly: Simple to operate with an intuitive software interface.
- Customisable: Adjustable washing and drying protocols to match different laboratory requirements.
- Reliable Performance: Engineered for durability and long-term efficiency.
System Requirements
Electric: Compatible with both 110V and 220V AC, regulated to 24V DC.Pneumatic: Requires air supply between 5.5 bar and 7 bar.
Liquid Supply: Operates within a range of 1 - 6 bar.
Compatible Liquids: Supports H2O, H2O2, bleach, and other approved solutions.
Microplate Compatibility: Works with most skirted 96- and 384-well microplates (minimum height: 10mm).
- Four selectable liquid options for washing
- Configurable washing and drying protocols
- Pre-run pressure check for safety and performance assurance
- Fully automated operation for enhanced efficiency
- Compatible with 96- and 384-well microplates
- Supports plate heights ranging from 10mm to 50mm
